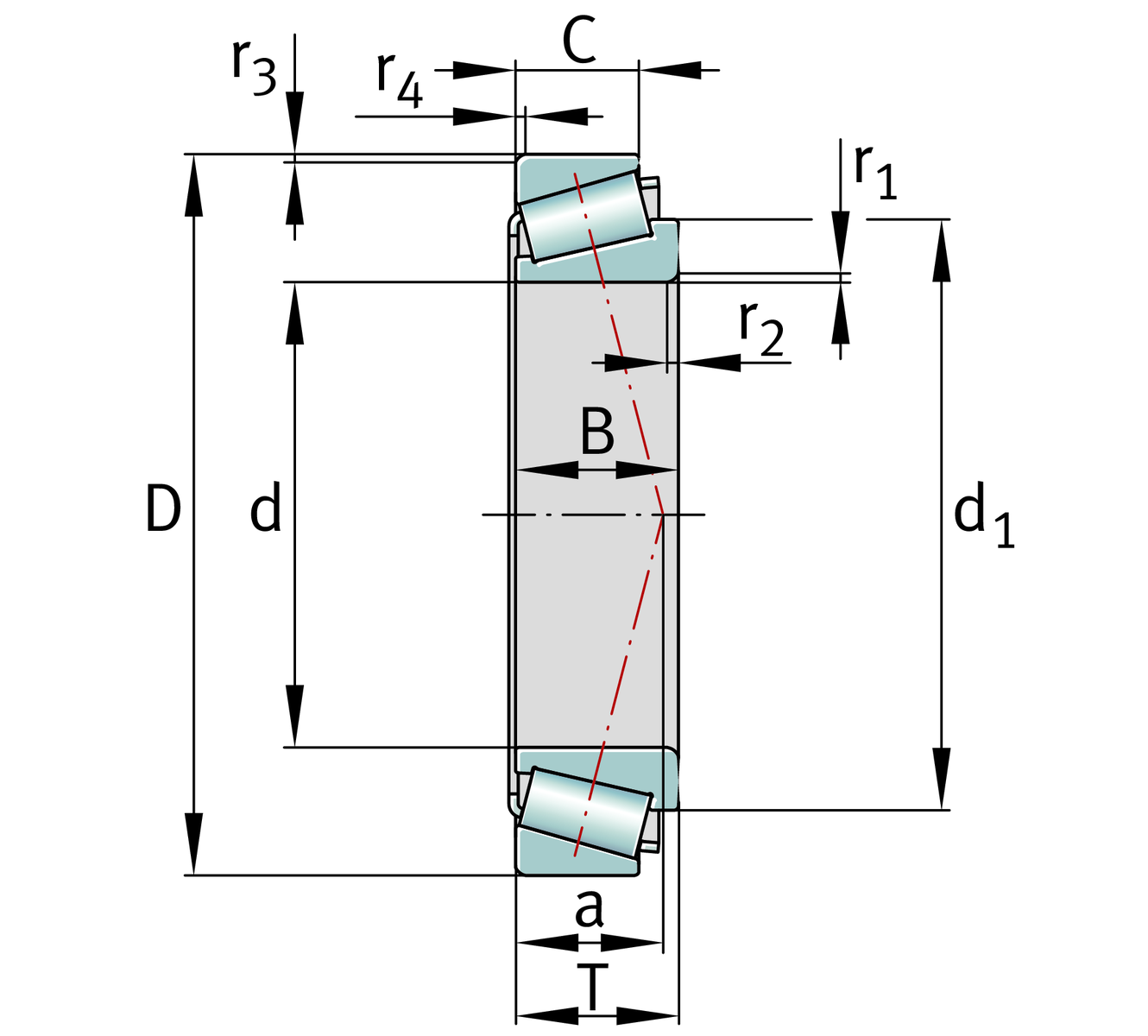

| LINA | 4T-30209 |
| SD | 45[mm] | Inside Diameter |
| D | 85[mm] | Outside iameter |
| T | 20.75[mm] | Height |
| B | 19.0[mm] | Width of inner ring |
| C | 16.0[mm] | Width of outer ring |
| R | 1.5[mm] | adius |
| R1 | 1.5[mm] | Radius |
| ORDER | 4T-30209 | Bearing No. |
| CR | 75[kN] | Basic Load Ratings |
| COR | 78.5[kN] | Basic Static Load Rating |
| CU | [kN] | Fatigue load limit |
| LSG | 4 400[min^-1] | Limiting Speeds (Grease) |
| LSO | 5 900[min^-1] | Limiting Speeds (Oil) |
| ISO | 3DB[mm] | Dimensions series to |
| A | 18.0[mm] | Load center |
| MASS | 0.50[kg] | 质量 |
| U | 深沟球或圆锥轴承意为内部互换，角接触轴承U的含义为安特杰系列 | 属性说明 |
